Tool Path Generation for Five-Axis Controlled Machining with Consideration of Structure Interference

Tomoyuki KANDA and Koichi MORISHIGE

Proceedings of the 6th International Conference on Leading Edge Manufacturing in 21st Century (LEM21), CD-ROM, 3379
(November 8-10, 2011, Omiya Sonic City, Saitama, Japan)

In case of the five-axis controlled machining, the machine structure, such as table, spindle, and column, can take various positions and postures. So, the interference among machine structures may occur. However, in the commercial CAM software cooping with five-axis controlled machining, the structure interference is not considered. Therefore, the output cutter location (CL) data might cause the structure interference. In this report, the positions and postures of the machine structure where the structure interference may occur are calculated, and the tool path generation method considering the above-mentioned problem was developed. As the result of the machining simulation, the effectiveness of the devised technique was actually confirmed.

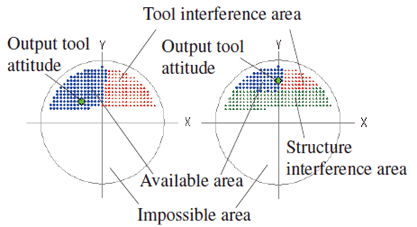

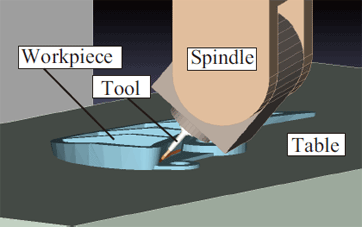

Comparison of C-Space in the case of spindletilting type@ Comparison of the machining simulation in the case of spindle-tilting type
