Development of Cutting Force Experience System for Milling Process Using Haptic Device

Kazuya Honda and Koichi Morishige

Proceedings of the 9th International Conference on Leading Edge Manufacturing in 21st Century (LEM21), A06 (088) (International Conference Center Hiroshima, Hiroshima, Japan, November 13-17, 2017)

In general, NC data used for machining is made by a CAM software. However, it requires knowledge and skill to judge whether the tool path and tool postures are suitable or not. This study is aiming at developing a system to experience cutting force in 5-axis controlled milling process. In this study, operating the end mill by a haptic device that can manipulate objects in a virtual space, the cutting condition is estimated from the removed voxel, and the force in the cutting process can be calculated. It was confirmed that the experience of cutting force had become possible by force feedback.

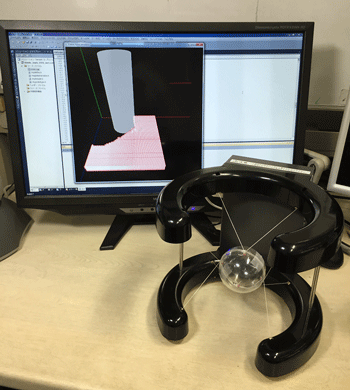

Developed system@
